Sidebar Plugin

A powerful, customizable navigation sidebar plugin for Payload CMS with sortable groups, pinning, custom links, and multi-color badges.

Overview

The Payload Sidebar Plugin enhances your Payload CMS admin interface with a powerful, customizable navigation sidebar featuring sortable groups, user-specific pinning, custom links, and visual notification badges.

Plugin Author

Created by Kari (tatsuyakari1203)

Features

  • Sortable Navigation Groups: Define custom order for your navigation groups
  • Pin Items: Pin frequently used items to the top (persisted per-user)
  • Custom Links & Groups: Add your own navigation links and groups
  • Custom Icons: Use Lucide icons or your own components
  • Multi-color Badges: Show notification counts with different colors
  • i18n Support: Works with English, Vietnamese, and other languages
  • Zero Config: Works out of the box, just add to plugins

Requirements

  • Payload CMS 3.x
  • Next.js 14+ or 15+
  • React 18+ or 19+

Installation

npm install payload-sidebar-plugin

Quick Start

1. Add Plugin to Config

The plugin works with zero configuration. Simply add it to your payload.config.ts:

import { buildConfig } from 'payload'
import { payloadSidebar } from 'payload-sidebar-plugin'

export default buildConfig({
  plugins: [
    payloadSidebar(), // Zero config - works out of the box!
  ],
  // ... rest of config
})

Automatic Setup

The plugin will automatically replace the default navigation with the enhanced sidebar. No additional configuration required to get started!

2. Optional: Configure Custom Features

Enhance your sidebar with custom links, groups, and ordering:

import { payloadSidebar } from 'payload-sidebar-plugin'
import { BarChart3, BookOpen } from 'lucide-react'

export default buildConfig({
  plugins: [
    payloadSidebar({
      groupOrder: {
        Content: 1,
        Users: 2,
        Settings: 3,
      },
      customLinks: [
        {
          label: 'Analytics',
          href: '/admin/analytics',
          group: 'Tools',
          icon: BarChart3,
        },
      ],
    }),
  ],
})

Screenshots

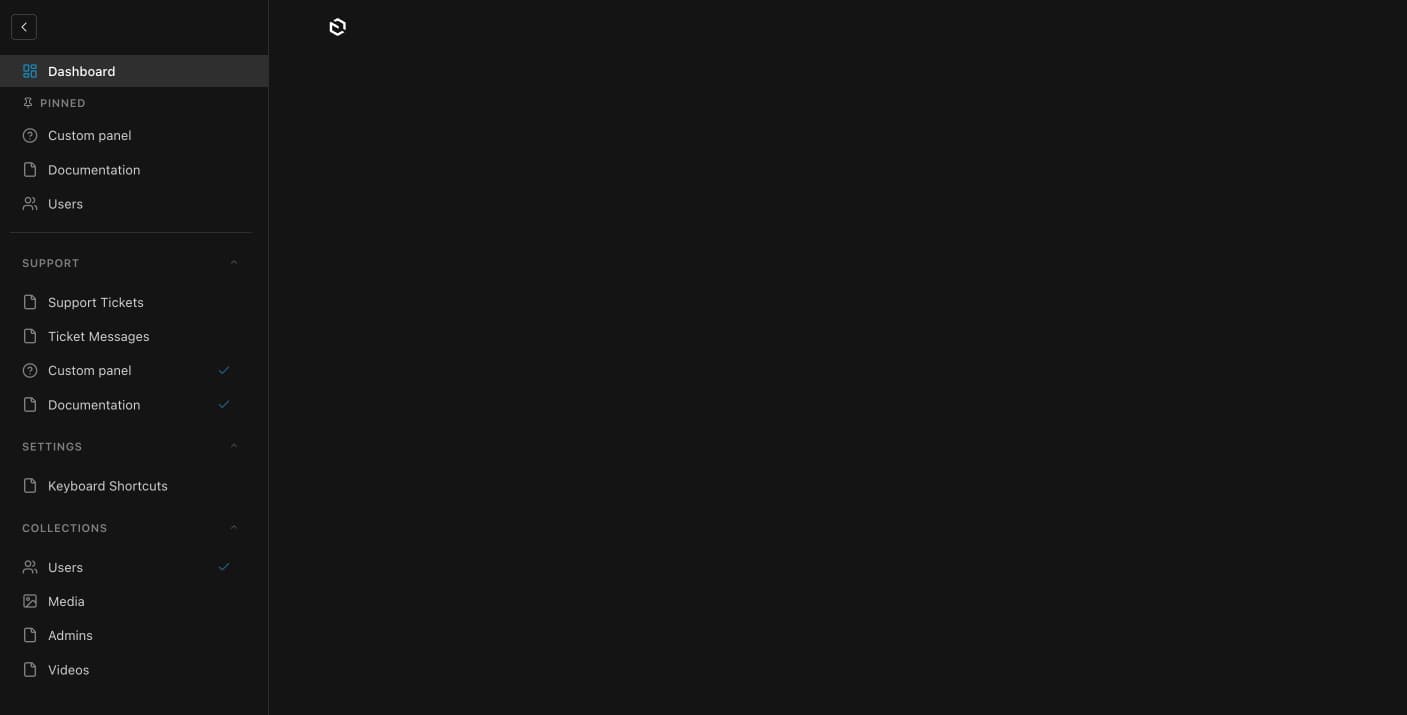

Payload Sidebar Plugin Screenshot

Configuration

Plugin Options

Prop

Type

Each custom link supports the following properties:

Prop

Type

CustomGroup Interface

Prop

Type

Custom Links & Groups

Add your own navigation links that aren't tied to Payload collections or globals. Perfect for admin dashboards, external documentation, third-party integrations, and quick access tools.

Basic Usage

import { payloadSidebar } from 'payload-sidebar-plugin'
import { BarChart3, BookOpen, FileCode, Github } from 'lucide-react'

export default buildConfig({
  plugins: [
    payloadSidebar({
      customLinks: [
        // Internal admin views
        {
          label: 'System Monitor',
          href: '/admin/system-monitor',
          group: 'Tools',
          icon: BarChart3,
          order: 1,
        },
        {
          label: 'API Explorer',
          href: '/api',
          group: 'Tools',
          icon: FileCode,
          order: 2,
        },
        // External resources (opens in new tab)
        {
          label: 'Payload Docs',
          href: 'https://payloadcms.com/docs',
          group: 'Resources',
          icon: BookOpen,
          external: true,
        },
        {
          label: 'GitHub Repo',
          href: 'https://github.com/your-org/your-repo',
          group: 'Resources',
          icon: Github,
          external: true,
        },
      ],

      customGroups: [
        { label: 'Tools', order: 15 },
        { label: 'Resources', order: 99, defaultOpen: false },
      ],
    }),
  ],
})

Available Default Icon Keys

The plugin includes default icon mappings for common use cases:

Content:

  • pages, posts, media, files, categories

Users & Settings:

  • users, settings, dashboard

Tools:

  • terminal, api, file-code, chart

External:

  • link, external-link, globe, docs

General:

  • sparkles, zap, star, folder, help, info

Group Ordering

Control the order of navigation groups with support for internationalization:

payloadSidebar({
  groupOrder: {
    // English labels
    Content: 1,
    Media: 2,
    Users: 3,
    Settings: 10,

    // Vietnamese labels (for i18n)
    'Nội dung': 1,
    'Phương tiện': 2,
    'Người dùng': 3,
    'Cài đặt': 10,

    // Custom groups
    Tools: 15,
    Resources: 99,

    // Unlisted groups default to priority 50
  },
})

Internationalization

The plugin supports multiple language labels for the same group. Define ordering for each language variant your application uses.

Pinning Items

Users can pin frequently used items to the top of the sidebar for quick access. Pinned items appear in a dedicated "Pinned" section and persist across sessions.

Features

  • Click the pin icon on any navigation item to pin it
  • Pinned items appear at the top in a dedicated section
  • Unpin items by clicking the X button
  • Works with collections, globals, and custom links
  • User-specific pins (each user has their own pinned items)

Storage Options

Server-side storage (recommended):

payloadSidebar({
  pinnedStorage: 'preferences', // Uses Payload's preference system
})

Server-side storage syncs pinned items across devices and sessions using Payload's built-in preference system.

Client-side storage:

payloadSidebar({
  pinnedStorage: 'localStorage', // Simpler, but doesn't sync across devices
})

Client-side storage is simpler to set up but doesn't sync across devices or sessions.

API Routes Setup

When using pinnedStorage: 'preferences', you need to create API routes to handle server-side persistence. Create these four routes in your Next.js application:

1. Get Pinned Items Route

Create src/app/api/nav/pinned/route.ts:

import { getPayload } from 'payload'
import config from '@payload-config'
import { NextResponse } from 'next/server'
import { headers } from 'next/headers'

export interface PinnedItem {
  slug: string
  type: 'collection' | 'global' | 'custom'
  order: number
}

export async function GET() {
  try {
    const payload = await getPayload({ config })
    const headersList = await headers()
    const { user } = await payload.auth({ headers: headersList })

    if (!user) {
      return NextResponse.json({ pinnedItems: [] })
    }

    const prefs = await payload.find({
      collection: 'payload-preferences',
      where: {
        key: { equals: 'nav-pinned' },
        'user.value': { equals: user.id },
      },
      limit: 1,
      depth: 0,
    })

    const pinnedItems = (prefs.docs[0]?.value as { pinnedItems?: PinnedItem[] })?.pinnedItems || []
    return NextResponse.json({ pinnedItems })
  } catch (error) {
    console.error('Error fetching pinned items:', error)
    return NextResponse.json({ pinnedItems: [] })
  }
}

2. Pin Item Route

Create src/app/api/nav/pin/route.ts:

import { getPayload } from 'payload'
import config from '@payload-config'
import { NextResponse } from 'next/server'
import { headers } from 'next/headers'
import type { PinnedItem } from '../pinned/route'

export async function POST(request: Request) {
  try {
    const payload = await getPayload({ config })
    const headersList = await headers()
    const { user } = await payload.auth({ headers: headersList })

    if (!user) {
      return NextResponse.json({ error: 'Unauthorized' }, { status: 401 })
    }

    const { slug, type } = await request.json()

    const prefs = await payload.find({
      collection: 'payload-preferences',
      where: {
        key: { equals: 'nav-pinned' },
        'user.value': { equals: user.id },
      },
      limit: 1,
      depth: 0,
    })

    const existingItems: PinnedItem[] =
      (prefs.docs[0]?.value as { pinnedItems?: PinnedItem[] })?.pinnedItems || []

    if (existingItems.some(item => item.slug === slug && item.type === type)) {
      return NextResponse.json({ success: true, message: 'Already pinned' })
    }

    const newItems: PinnedItem[] = [...existingItems, { slug, type, order: existingItems.length }]
    const userCollection = (user as { collection?: string }).collection || 'users'

    await payload.db.upsert({
      collection: 'payload-preferences',
      data: {
        key: 'nav-pinned',
        user: { relationTo: userCollection, value: user.id },
        value: { pinnedItems: newItems },
      },
      where: {
        and: [
          { key: { equals: 'nav-pinned' } },
          { 'user.value': { equals: user.id } },
          { 'user.relationTo': { equals: userCollection } },
        ],
      },
    })

    return NextResponse.json({ success: true, pinnedItems: newItems })
  } catch (error) {
    console.error('Error pinning item:', error)
    return NextResponse.json({ error: 'Failed to pin' }, { status: 500 })
  }
}

3. Unpin Item Route

Create src/app/api/nav/unpin/route.ts:

import { getPayload } from 'payload'
import config from '@payload-config'
import { NextResponse } from 'next/server'
import { headers } from 'next/headers'
import type { PinnedItem } from '../pinned/route'

export async function POST(request: Request) {
  try {
    const payload = await getPayload({ config })
    const headersList = await headers()
    const { user } = await payload.auth({ headers: headersList })

    if (!user) {
      return NextResponse.json({ error: 'Unauthorized' }, { status: 401 })
    }

    const { slug, type } = await request.json()

    const prefs = await payload.find({
      collection: 'payload-preferences',
      where: {
        key: { equals: 'nav-pinned' },
        'user.value': { equals: user.id },
      },
      limit: 1,
      depth: 0,
    })

    if (!prefs.docs[0]) {
      return NextResponse.json({ success: true, message: 'No pinned items' })
    }

    const existingItems: PinnedItem[] =
      (prefs.docs[0]?.value as { pinnedItems?: PinnedItem[] })?.pinnedItems || []

    const newItems = existingItems
      .filter(item => !(item.slug === slug && item.type === type))
      .map((item, index) => ({ ...item, order: index }))

    const userCollection = (user as { collection?: string }).collection || 'users'

    await payload.db.upsert({
      collection: 'payload-preferences',
      data: {
        key: 'nav-pinned',
        user: { relationTo: userCollection, value: user.id },
        value: { pinnedItems: newItems },
      },
      where: {
        and: [
          { key: { equals: 'nav-pinned' } },
          { 'user.value': { equals: user.id } },
          { 'user.relationTo': { equals: userCollection } },
        ],
      },
    })

    return NextResponse.json({ success: true, pinnedItems: newItems })
  } catch (error) {
    console.error('Error unpinning item:', error)
    return NextResponse.json({ error: 'Failed to unpin' }, { status: 500 })
  }
}

4. Reorder Pinned Items Route

Create src/app/api/nav/reorder/route.ts:

import { getPayload } from 'payload'
import config from '@payload-config'
import { NextResponse } from 'next/server'
import { headers } from 'next/headers'
import type { PinnedItem } from '../pinned/route'

export async function POST(request: Request) {
  try {
    const payload = await getPayload({ config })
    const headersList = await headers()
    const { user } = await payload.auth({ headers: headersList })

    if (!user) {
      return NextResponse.json({ error: 'Unauthorized' }, { status: 401 })
    }

    const { items } = await request.json()

    const reorderedItems = items.map((item: PinnedItem, index: number) => ({
      ...item,
      order: index,
    }))

    const userCollection = (user as { collection?: string }).collection || 'users'

    await payload.db.upsert({
      collection: 'payload-preferences',
      data: {
        key: 'nav-pinned',
        user: { relationTo: userCollection, value: user.id },
        value: { pinnedItems: reorderedItems },
      },
      where: {
        and: [
          { key: { equals: 'nav-pinned' } },
          { 'user.value': { equals: user.id } },
          { 'user.relationTo': { equals: userCollection } },
        ],
      },
    })

    return NextResponse.json({ success: true, pinnedItems: reorderedItems })
  } catch (error) {
    console.error('Error reordering items:', error)
    return NextResponse.json({ error: 'Failed to reorder' }, { status: 500 })
  }
}

Badge System

Display notification counts, statistics, or status indicators on navigation items using the badge system.

Setup

Step 1: Create Badge Provider

Create a client component to provide badge data:

// src/components/NavBadgeProvider.tsx
'use client'

import React from 'react'
import { SidebarBadgeProvider } from 'payload-sidebar-plugin/components'

export function NavBadgeProvider({ children }: { children: React.ReactNode }) {
  const badges = {
    // Key must match collection/global slug exactly
    posts: { count: 5, color: 'blue' as const },
    comments: { count: 12, color: 'red' as const },
  }

  return <SidebarBadgeProvider badges={badges}>{children}</SidebarBadgeProvider>
}

Step 2: Register as Admin Provider

Add the provider to your Payload config:

// payload.config.ts
export default buildConfig({
  admin: {
    components: {
      providers: ['@/components/NavBadgeProvider'],
    },
  },
})

Step 3: Generate Import Map

npx payload generate:importmap

Badge Colors

ColorUse CaseExample
redUrgent, unread, errorsUnread messages, failed jobs
orangeWarnings, needs attentionPending comments
yellowDrafts, pending reviewDraft posts
blueInformationalTotal pages
greenSuccess, publishedPublished posts
grayArchived, inactiveMedia count

Real-time Badges Example

Create dynamic badges that update based on your application state:

// src/components/NavBadgeProvider.tsx
'use client'

import React from 'react'
import { SidebarBadgeProvider } from 'payload-sidebar-plugin/components'
import { useNotifications } from '@/providers/NotificationProvider'

export function NavBadgeProvider({ children }: { children: React.ReactNode }) {
  const { unreadChats, unreadComments } = useNotifications()

  const badges: Record<
    string,
    { count: number; color: 'red' | 'yellow' | 'blue' | 'green' | 'orange' | 'gray' }
  > = {}

  // Only show badges when there are unread items
  if (unreadChats > 0) {
    badges['chat-dashboard'] = { count: unreadChats, color: 'red' }
  }
  if (unreadComments > 0) {
    badges['comments-dashboard'] = { count: unreadComments, color: 'orange' }
  }

  return <SidebarBadgeProvider badges={badges}>{children}</SidebarBadgeProvider>
}

Styling

The plugin uses BEM-style CSS classes with a configurable prefix for easy customization.

CSS Class Structure

/* Main container */
.nav { }
.nav--nav-open { }
.nav__scroll { }
.nav__wrap { }

/* Pinned section */
.nav__pinned-section { }
.nav__pinned-header { }
.nav__pinned-items { }
.nav__pinned-item { }

/* Links */
.nav__link { }
.nav__link--active { }
.nav__link--external { }
.nav__link-icon { }
.nav__link-label { }
.nav__link-badge { }
.nav__link-external-icon { }

/* Pin button */
.nav__pin-btn { }
.nav__pin-btn--pinned { }
.nav__unpin-btn { }

Custom Styling Example

/* Enhance pinned section */
.nav__pinned-section {
  background: var(--theme-elevation-50);
  border-radius: 8px;
  margin: 8px;
  padding: 8px;
}

/* Custom active state */
.nav__link--active {
  background: var(--theme-elevation-100);
  border-left: 3px solid var(--theme-success-500);
}

/* Style external link icon */
.nav__link-external-icon {
  opacity: 0.5;
  margin-left: auto;
}

CSS Variables Override

payloadSidebar({
  cssVariables: {
    '--badge-red-bg': '#ef4444',
    '--badge-blue-bg': '#3b82f6',
    '--badge-green-bg': '#10b981',
  },
})

Examples

Blog Setup

import { payloadSidebar } from 'payload-sidebar-plugin'
import { BookOpen, FileText } from 'lucide-react'

export default buildConfig({
  plugins: [
    payloadSidebar({
      groupOrder: {
        Content: 1,
        Media: 2,
        Users: 3,
        Settings: 10,
      },
      customLinks: [
        {
          label: 'Writing Guide',
          href: 'https://docs.example.com/writing',
          group: 'Resources',
          icon: BookOpen,
          external: true,
        },
      ],
      customGroups: [
        { label: 'Resources', order: 99, defaultOpen: false },
      ],
    }),
  ],
})

E-commerce Setup

import { payloadSidebar } from 'payload-sidebar-plugin'
import { BarChart3, Package } from 'lucide-react'

export default buildConfig({
  plugins: [
    payloadSidebar({
      groupOrder: {
        Products: 1,
        Orders: 2,
        Customers: 3,
        Analytics: 4,
        Settings: 99,
      },
      customLinks: [
        {
          label: 'Sales Dashboard',
          href: '/admin/sales-dashboard',
          group: 'Analytics',
          icon: BarChart3,
        },
        {
          label: 'Inventory',
          href: '/admin/inventory',
          group: 'Products',
          icon: Package,
          order: 0,
        },
        {
          label: 'Stripe Dashboard',
          href: 'https://dashboard.stripe.com',
          group: 'External',
          external: true,
        },
      ],
      customGroups: [
        { label: 'Analytics', order: 4 },
        { label: 'External', order: 100, defaultOpen: false },
      ],
    }),
  ],
})

API Reference

Exports

// Main plugin
import { payloadSidebar } from 'payload-sidebar-plugin'

// Client components
import {
  SidebarBadgeProvider,
  CustomNavClient,
  NavContent,
  NavLink,
  PinnedSection,
} from 'payload-sidebar-plugin/components'

// Hooks
import { useBadge, usePinnedNav } from 'payload-sidebar-plugin/hooks'

// Server components (RSC)
import { CustomNav } from 'payload-sidebar-plugin/rsc'

// Types
import type {
  PayloadSidebarPluginOptions,
  CustomLink,
  CustomGroup,
  NavEntity,
  PinnedItem,
  BadgeConfig,
  BadgeColor,
} from 'payload-sidebar-plugin'

useBadge Hook

Access badge information for a specific navigation item:

import { useBadge } from 'payload-sidebar-plugin/hooks'

function MyComponent() {
  const badge = useBadge('posts')
  // Returns { count: 5, color: 'blue' } or null

  if (badge) {
    return <span className={`badge--${badge.color}`}>{badge.count}</span>
  }
  return null
}

usePinnedNav Hook

Manage pinned navigation items programmatically:

import { usePinnedNav } from 'payload-sidebar-plugin/hooks'

function MyComponent() {
  const {
    pinnedItems,  // Array of pinned items
    loading,      // Loading state
    isPinned,     // Check if item is pinned
    pinItem,      // Pin an item
    unpinItem,    // Unpin an item
    togglePin,    // Toggle pin state
    refresh,      // Refresh pinned items
  } = usePinnedNav()

  return (
    <button onClick={() => togglePin('posts', 'collection')}>
      {isPinned('posts', 'collection') ? 'Unpin' : 'Pin'} Posts
    </button>
  )
}

Troubleshooting

Plugin Not Showing Custom Navigation

Solutions:

  1. Regenerate the import map:
    npx payload generate:importmap
  2. Clear Next.js cache and restart:
    rm -rf .next && npm run dev
  3. Check browser console for errors

Solutions:

  1. Verify customLinks array is properly formatted
  2. Ensure group property matches a group in customGroups or existing Payload groups
  3. Check that the icon import is correct (if using Lucide icons)
  4. Verify no TypeScript errors in your configuration

Badges Not Appearing

Solutions:

  1. Ensure SidebarBadgeProvider is registered in admin.components.providers
  2. Verify badge keys match collection/global slugs exactly (case-sensitive)
  3. Check that badge count is greater than 0
  4. Run npx payload generate:importmap after adding the provider
  5. Clear browser cache and restart development server

Pinned Items Not Persisting

For pinnedStorage: 'preferences':

  1. Verify all 4 API routes are created in the correct locations
  2. Check that user is authenticated when pinning
  3. Inspect browser console for API errors
  4. Verify the payload-preferences collection exists
  5. Check server logs for database errors

For pinnedStorage: 'localStorage':

  1. Verify browser supports localStorage
  2. Check for privacy extensions blocking storage
  3. Look for localStorage quota errors in console

Style Conflicts

Solutions:

  1. Use a custom classPrefix to namespace classes:
    payloadSidebar({
  classPrefix: 'my-nav',
})
  2. Override specific CSS variables
  3. Use browser DevTools to inspect and identify conflicting styles
  4. Check for CSS specificity issues

Performance Issues

Solutions:

  1. Limit the number of custom links (recommended: under 20)
  2. Use defaultOpen: false for groups with many items
  3. Optimize badge calculations to avoid frequent re-renders
  4. Consider lazy-loading external link metadata

License

MIT © Kari (tatsuyakari1203)

Enhanced Sidebar Plugin

An enhanced sidebar plugin for Payload CMS that adds a tabbed navigation system to organize collections and globals into logical groups.

On this page

OverviewInstallationScreenshotsConfigurationCustom Links & GroupsGroup OrderingPinning ItemsStorage OptionsAPI Routes SetupBadge SystemBadge ColorsReal-time Badges ExampleStylingExamplesAPI ReferenceExportsuseBadge HookusePinnedNav HookTroubleshootingLinksLicense
